Description
- 💡 Pole: Straight steel grade B extrusion with yield of 46,000 PSI. Conforms to ASTM A500 standards. Poles have ground bolt welded on hand-hole inside pole. Pole Extrusion is conjoined to Anchor Base by welding internal to pole shaft and external to pole shaft. Hand Hole reinforcement is constructed of 3“x 5” rectangular steel tubing which is welded to pole shaft for added strength.
- 💡 Base Plate: Manufactured from A36 Steel rated at 36,000 PSI, conforms the ASTM –A36 standards. Reinforced plates are welded.
- 💡 A set of steel anchor bolts are provided with each pole.
- 💡 Finish: Hot-dip galvanized to ASTM A-123 or Polyester powder coating, which bake at 200°C or both.
- 💡 Other Accessories: Removable black pole cap; Base cover in two pieces; Holes Bushing; Hot dip galvanized anchor bolts with nuts.

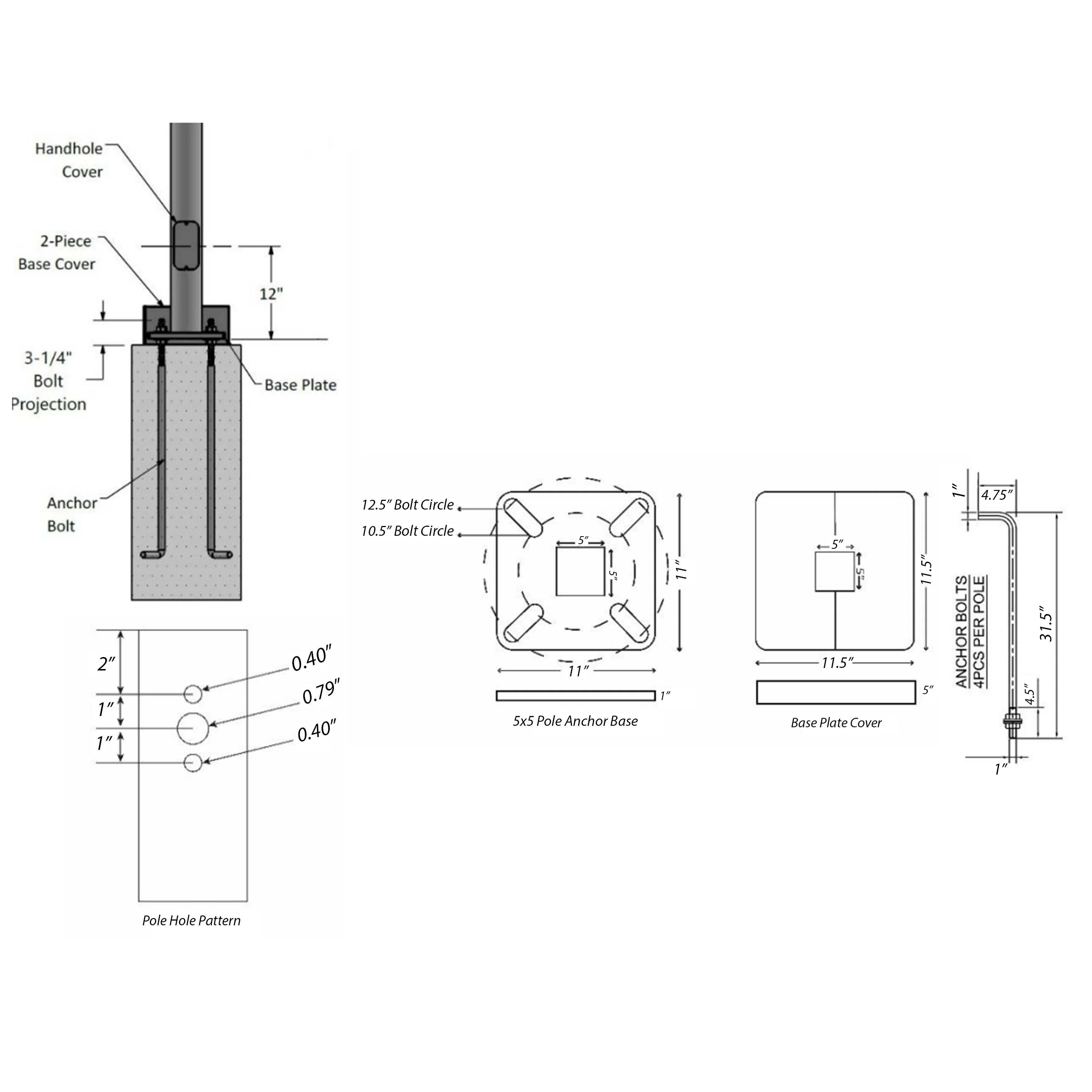

Pole Spec Sheet
Specification
| Product Attributes | |||
|---|---|---|---|
| Brand | Bright LED | Length | 30ft |
| Part No. | SL-30-55 | Measurement | 5×5 |
| SKU |
SL-30-55-SQ-07-BRZ |
Material | Steel |
| Color | Bronze | Gauge | 07 |
